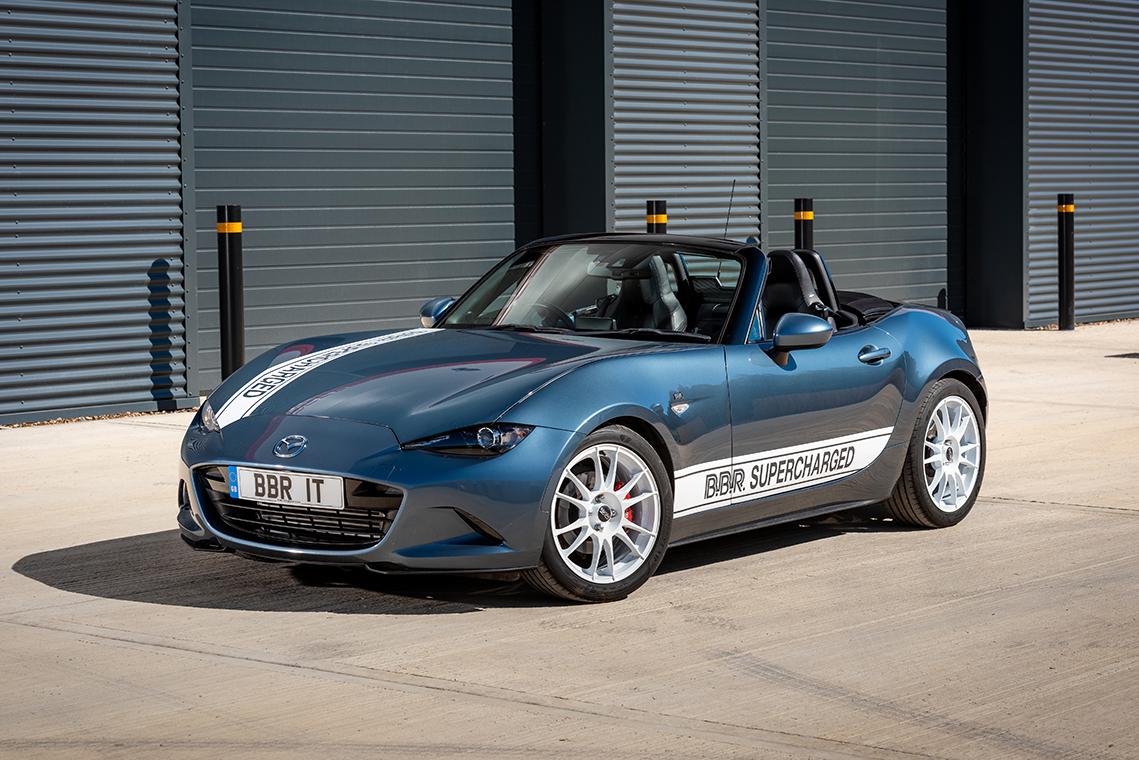

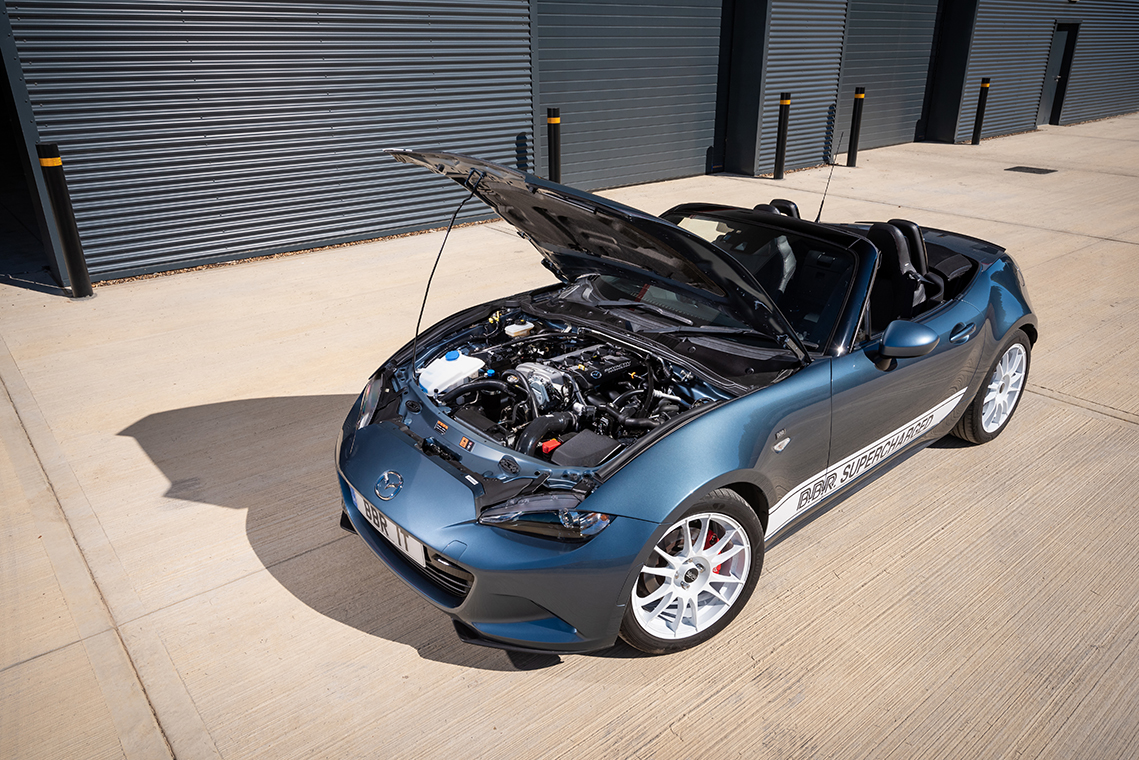

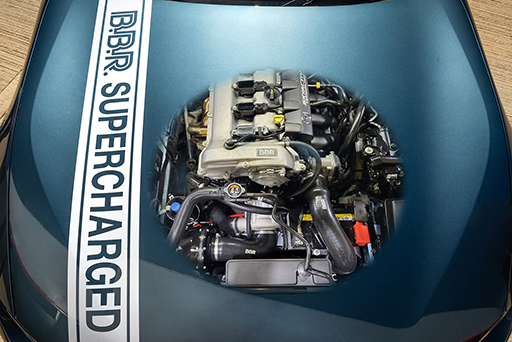

the ultimate ND mx-5 supercharger kit

strong, smooth

predictable powerband

with oem driveability

FORCED INDUCTION FOR THE MX-5 ND JUST GOT EVEN BETTER

Designed by the experts

enjoyed by you

key

Statistics

Increased Power
Stage 1
43% more BHP
Stage 2
55% more BHP
Increased Torque
Stage 1
200-210 ft-lb
Stage 2
210-220 ft-lb
Reduced Launch
Stage 1
5.3 seconds
Stage 2
5.1 seconds

01

Launch control

Get the best standing start possible with our special launch control feature. Set your RPM launch point and then let the ECU do the rest to manage traction off the line.

User adjustable launch points only available for models fitted with cruise control, otherwise possible with ECU Connect.

02

flat foot shift

Allowing the driver to keep their foot planted on the accelerator whilst changing gear minimises shift times, keeps maximum engine speed & torque ready for the next gear.

03

switchable maps

Four stage switchable mapping adjustable on the fly, 98+, 95RON (E5/E10) fuel modes, Valet Mode, Race Mode, etc

Stage Switchable Mapping Only Available for Models Fitted with Cruise Control, otherwise possible with ECU Connect.

04

downshift
auto-blip

The Auto Blip feature applies a short burst of throttle when the driver is down-shifting, which is particularly useful under braking. This raises the RPM to help provide a smooth entry into the lower gear by reducing the engine-braking effect.

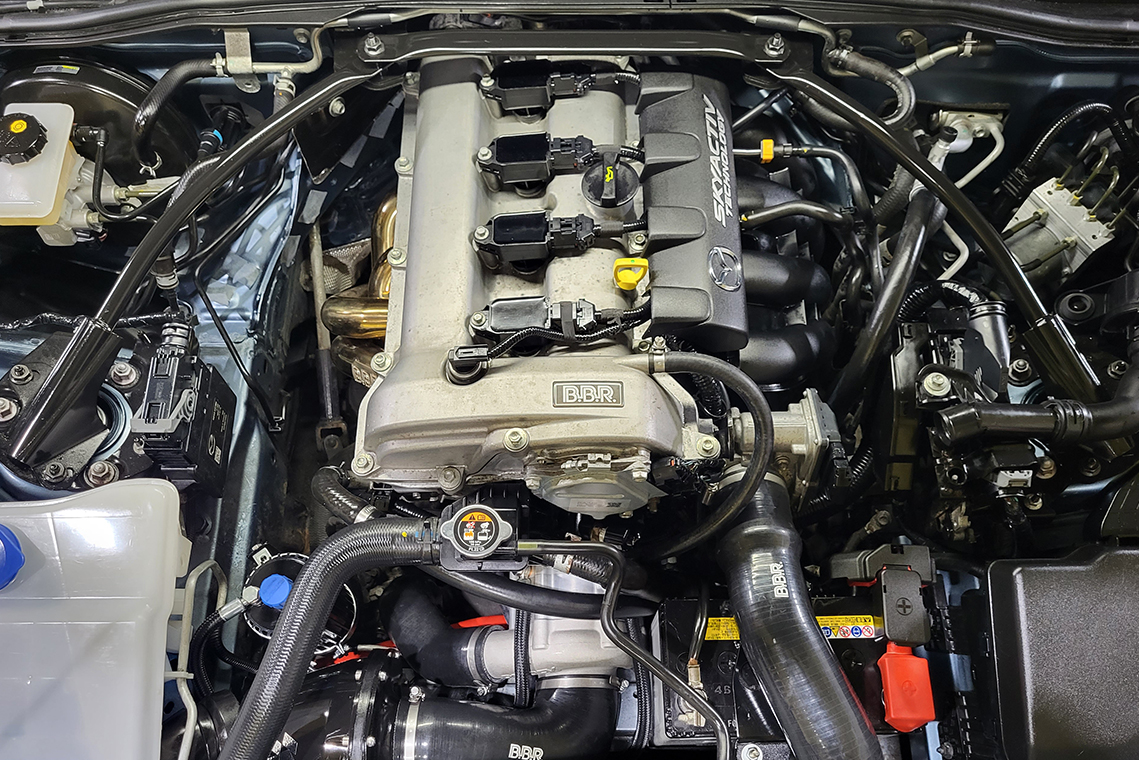

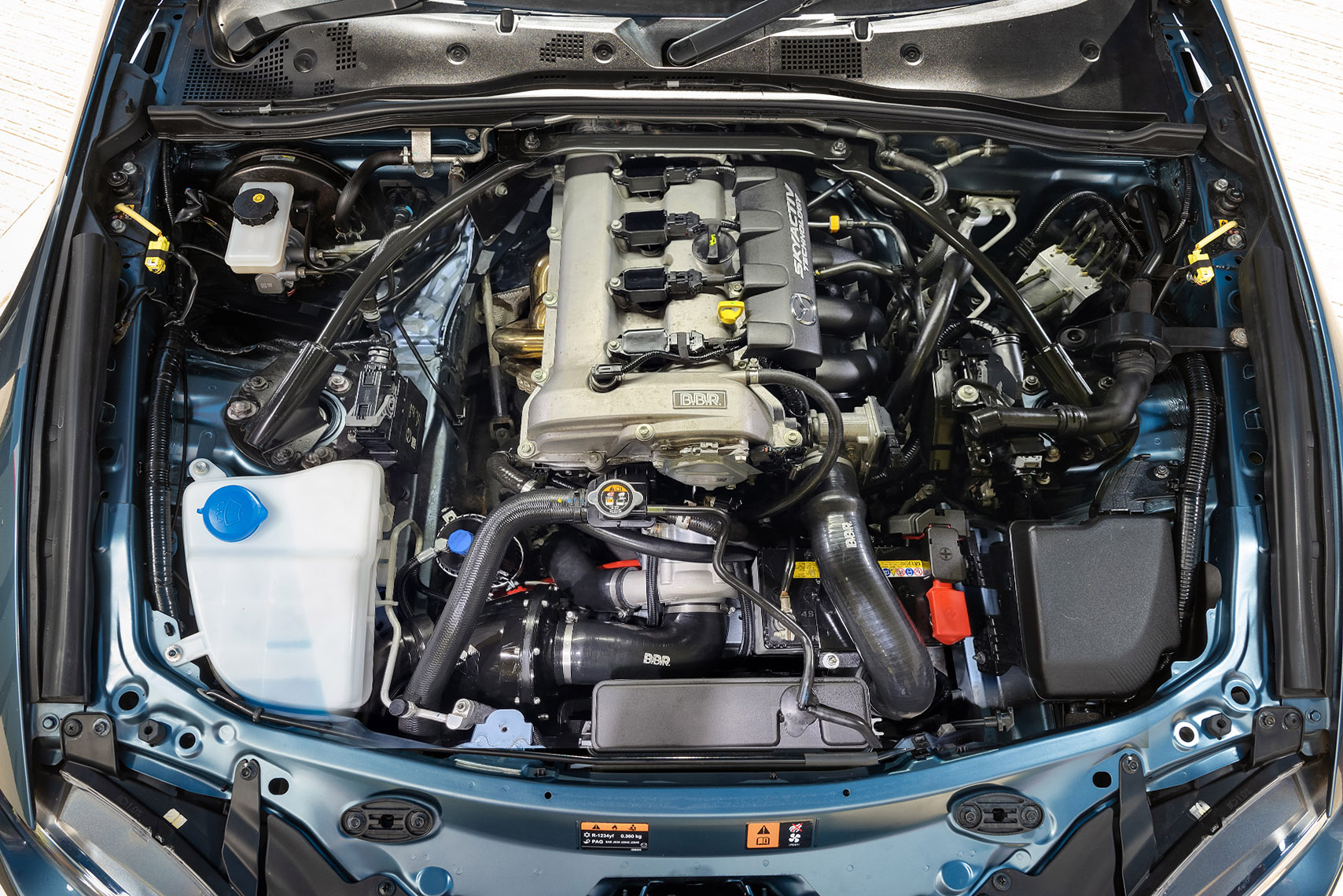

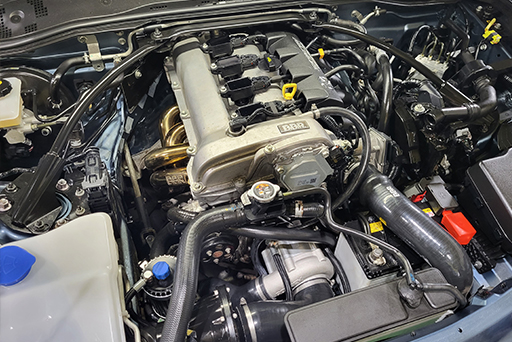

small

but mighty

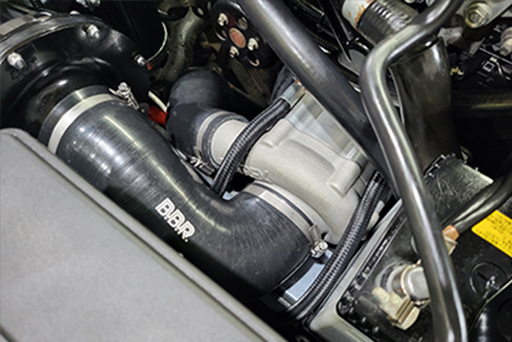

Based upon the Rotrex C30-94 Centrifugal design with superior efficiency, silent operation and self contained oiling system, combined with it’s unique patented traction drive technology it offers  the smoothest linear power delivery. The supercharger supplies airflow of up to 0.39kg/s reaching impeller speeds of up to 100,000RPM combining small size with exceptional performance & durability.


If left unrestricted would go onto 430BHP!

smooth

power delivery

Our Supercharger kit's true strength lies in exploiting the exceptional balance and poise the chassis has from the factory. Retaining the car's OEM smooth, linear power delivery characteristics, with no spikes in torque are in keeping with the MX5's character.

FRONT
mounted intercooler

+ MOCAL OIL COOLER

Fitment behind the front bumper, offers protection from the elements & is the perfect location for cooling down the charge air generated by the Rotrex, offering reduced heat soak for a maximum safe power and reliable horse power increase. Using a high quality core, hand fabricated & welded by highly skilled craftsmen, our inter-cooler offers excellent thermal properties, flow characteristics & all with minimal pressure drop. A Mocal oil cooler is also installed delivering Rotrex traction fluid cooling under the harshest of environments.

industry leading

tuning

Using industry leading ECU tuning allowing a true and clean re-calibration of the standard ECU.
Our MX5 supercharger is calibrated using a powerful tools to add special features such as Launch control and switchable maps.

small

but mighty

Based upon the Rotrex C30-94 Centrifugal design with superior efficiency, silent operation and self contained oiling system, combined with it’s unique patented traction drive technology it offers  the smoothest linear power delivery. The supercharger supplies airflow of up to 0.39kg/s reaching impeller speeds of up to 100,000RPM combining small size with exceptional performance & durability.


If left unrestricted would go onto 430BHP!

smooth

power delivery

Our Supercharger kit's true strength lies in exploiting the exceptional balance and poise the chassis has from the factory. Retaining the car's OEM smooth, linear power delivery characteristics, with no spikes in torque are in keeping with the MX5's character.

FRONT mounted intercooler

+ MOCAL OIL COOLER

Fitment behind the front bumper, offers protection from the elements & is the perfect location for cooling down the charge air generated by the Rotrex, offering reduced heat soak for a maximum safe power and reliable horse power increase. Using a high quality core, hand fabricated & welded by highly skilled craftsmen, our inter-cooler offers excellent thermal properties, flow characteristics & all with minimal pressure drop. A Mocal oil cooler is also installed delivering Rotrex traction fluid cooling under the harshest of environments.

industry leading

tuning

Using industry leading ECU tuning allowing a true and clean re-calibration of the standard ECU.

Our MX5 supercharger is calibrated using powerful tools to add special features such as Launch control, Auto Blip and Flat Foot shifting.

increased performance

Our Stage 2 Supercharger delivers 240/250bhp, 50-55% more than a stock Mazda MX5, whilst our Stage 1 Supercharger develops 220/230 bhp.

0-60 in 5.1 seconds

STAGE 2
5.1 SEC
STAGE 1
5.3 SEC
OEM
7.3 SEC
Replay?

power charts

Stock
BHP
161
FT-LB
153
0-60
7.3s
Highlight on Chart
Stage 1
BHP
230
FT-LB
210
0-60
5.3s
Highlight on Chart
Stage 2
BHP
250
FT-LB
220
0-60
5.1s
Highlight on Chart

4-Way
Map SWITCHING

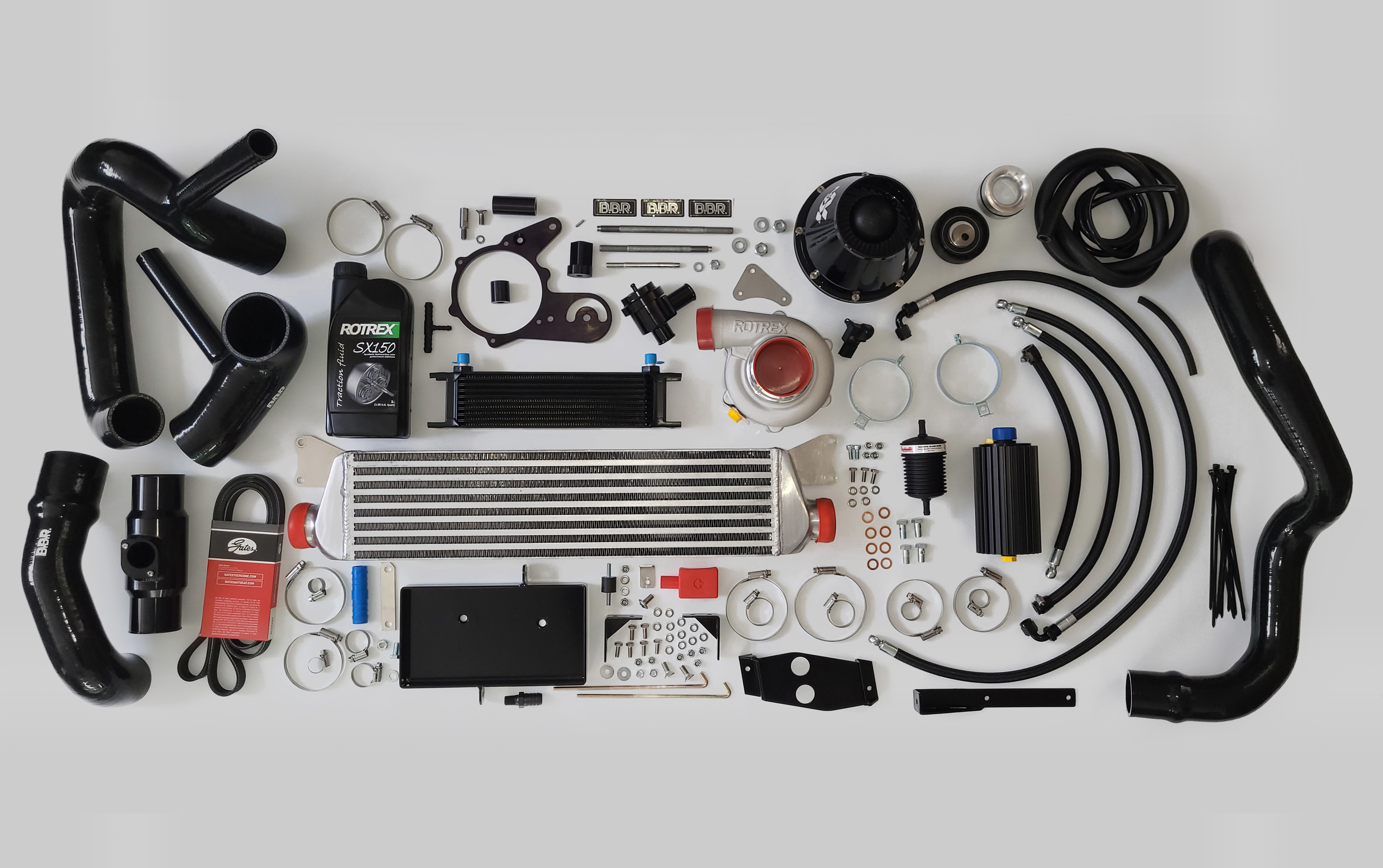

What's
included

bbr stage 1

  • C30-94 Rotrex Supercharger
  • Rotrex Oil reservoir
  • BBR Oil Cooler
  • BBR High Quality Anodised CNC Rotrex brackets
  • BBR High Quailty Anodised CNC Tensioner brackets
  • BBR spec revised ancillary belt, tensioner and Supercharger
  • BBR 250BHP intake restrictor
  • BBR high flow K&N Typhoon induction kit
  • BBR Front mounted intercooler
  • BBR branded Intercooler silicone hoses
  • BBR bullet black anodised MAF mount
  • BBR / Bosch MAP / Temperature sensor
  • BBR Recirculating piston type dump valve in factory black finish
  • BBR lightweight aluminium battery tray in factory black finish inc battery stay & connection extension
  • BBR Starchip EcuTek calibration software
  • Optional hardware only and BBR Software/EcuTek programming cable choices for DIY clients

BBR stage 2

  • BBR 4-1 Stainless steel exhaust manifold
  • BBR high flow 2.5" Stainless Steel centre section inc sports catalyst
  • BBR high flow 2.5" Stainless Steel Grand Tourer rear silencer - Super Sport option available
  • Optional track spec Forge Motorsport Intercooler - an increased core size with higher efficiency keeping inlet temperatures to a minimum under the most testing conditions.

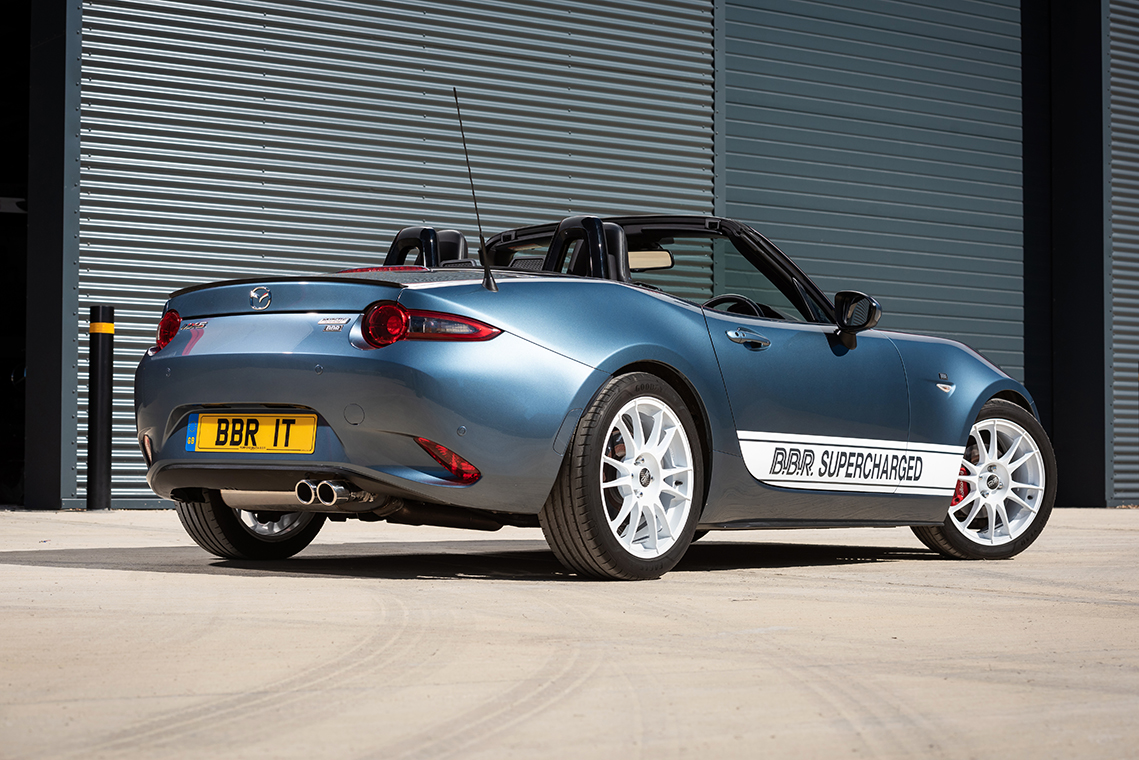

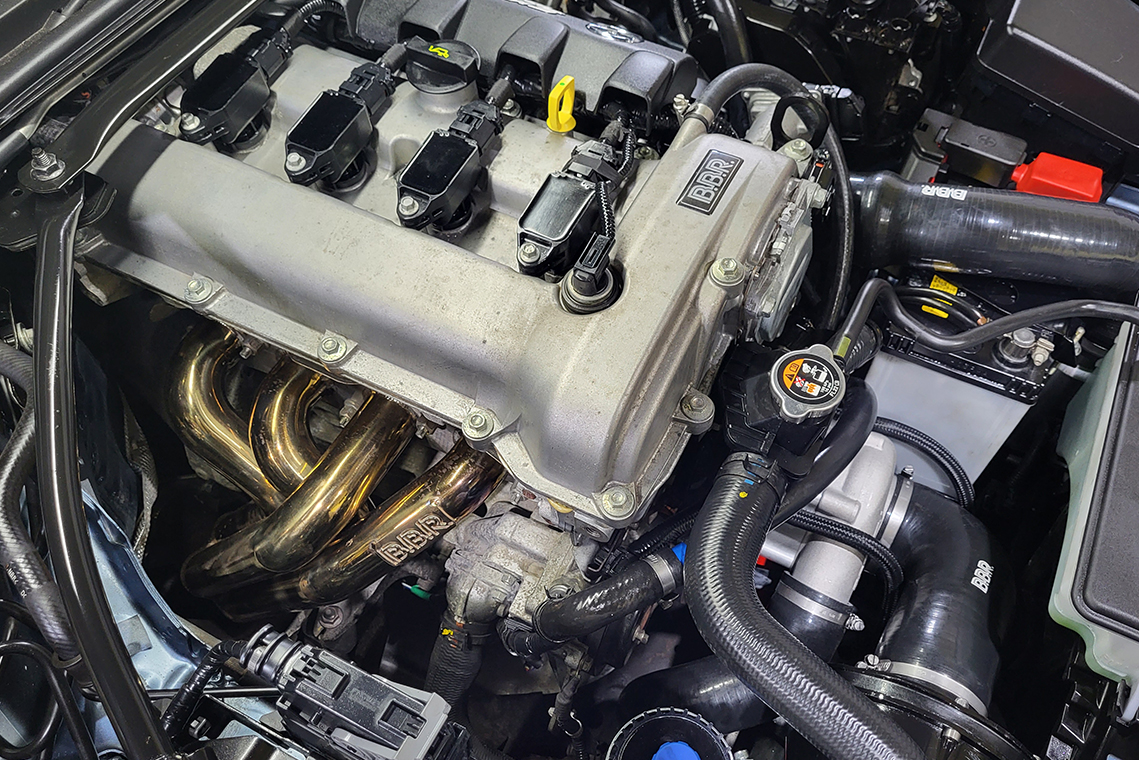

BBR HIGH FLOW EXHAUST SYSTEM

Stage Two concentrates on improving flow, not boost pressure.

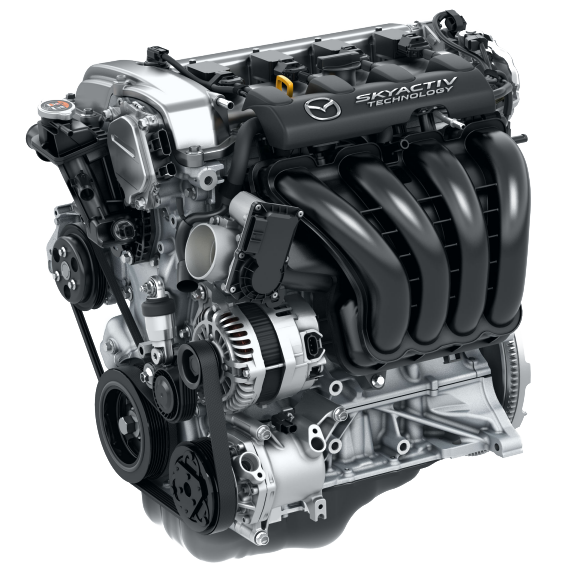

Utilising BBR’s fully TIG welded stainless steel 2.5 inch bore, high flow exhaust enables further power to be released without additional stress on the high compression SkyActiv-G engine.

pricing

Stage 1

from £4490

The BBR Stage One supercharged conversion is available now for all 2.0-litre 2015-2019 MX-5 (ND) models at a cost of £4795* on a fully fitted 'drive-in, drive-out' basis from BBR. The DIY version, intended for export and competent mechanics, is also available as hardware only £3895, including comprehensive instructions and technical support, or including BBR software with either EcuTek ProEcu or ECU Connect programming cables starting at £4490.

The BBR Stage One supercharged conversion carries a 12 month warranty.

All prices exclude VAT

*Standard vehicles will require an EcuTek tuning licence

Comprehensive Instructions
Technical Support
12 Month Warranty
buy now

Stage 2

from £5990

The BBR Stage Two supercharged conversion is available now for all 2.0-litre 2015-2019 MX-5 (ND)  models at a cost of £6495* on a fully fitted 'drive-in, drive-out' basis from BBR. The DIY version, intended for export and competent mechanics, is also available as hardware only £5395, including comprehensive instructions and technical support, or including BBR software with either EcuTek ProEcu or ECU Connect programming cables starting at £5990.

The BBR Stage Two supercharged conversion carries a 12 month warranty.

All prices exclude VAT

*Standard vehicles will require an EcuTek tuning licence

Comprehensive Instructions
Technical Support
12 Month Warranty
buy now

faq

It says that the Rotrex c30-94 is capable of 400+ bhp - how do i get this?

The Mazda MX-5 SkyActiv-G is a high compression small ported lightweight engine built with economy in-mind. Increasing the boost pressure and performance will require replacement of the weak OEM conecting rods and at this stage reducing the compression ratio is desirable as is transmission replacement. Please contact us for more information.

do i require any other parts for the supercharger kit?

All parts are included for both BBR Stage One and Two conversions, please consider our larger Forge Motorsport intercooler option for hard use.

can i buy the kit and fit it myself?

Yes, for competent enthusiasts the kit is available from our website.

do i have to use high octane fuel?

With any performance vehicle we always recommend the use of the best fuel available to you. Our preferred choice is Shell V Power (99RON). Lower octane calibrations are available.

do i need to upgrade my brakes?

For normal road use the ND MX-5 has a good brake setup, if used on the track or driven hard we recommend a disc and pad, or brake caliper upgrade.

do i need to upgrade my Suspension?

The MX5 is a very nicely balanced and setup from the factory. We recommend a good alignment setup and a set of BBR lower springs with Koni dampers if driving hard or on track, for more track focused coilover options please contact us for more information.

what warranty is avaliable with the kits?

1 year parts on all components

will the kit affect fuel economy?

At cruise conditions the fuel economy should be unaffected.

does the supercharger require maintainance?

The Rotrex oil should be changed every 50,000 miles or two years whichever comes sooner.

does this kit fit other mx-5's?

This kit will only fit the 2005 - 2015 Mazda MX5 NC. While development has been completed on a 2.0 engine this kit will also fit the 1.8. (power fiqures for the 1.8 will differ to the 2.0)

We will be updating the site with NA, NB and ND versions as and when they launch.

I HAVE A 2019 OR LATER 184PS VERSION – IS THIS AN OPTION?

Unfortunately the later 2019 have a completely different ECU (Engine Control Unit) along with a different processor, this is something that we are currently working on which must be perfect before release. A hardware only version can be purchased for motorsport use with an aftermarket (replacement) ECU.

I HAVE A 1.5 LITRE ENGINE – IS THIS AN OPTION?

For the 1.5 litre engine we offer our highly efficient twin-scroll turbocharged conversion please see: https://bbrgti.com/products/bbr-mx-5-nd-stage-1-turbo-1-5

At this stage we do not believe development for the 1.5 would be worthwhile, however please contact us if a 1.5 version is of interest.
